PIPE REDUCER – ECCENTRIC REDUCER | CONCENTRIC REDUCER

MANUFACTURER/EXPORTER IN INDIA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43

CARBON, ALLOY, STAINLESS STEEL, COPPER REDUCER

Exotic piping Solution INC is a leading manufacturer, exporter and supplier of high quality and high performance steel eccentric reducers and steel concentric reducers in a variety of shapes and dimensions. Our products are manufactured as per ASTM, ASME, DIN, other international standards and as per custom requirement of our customers.

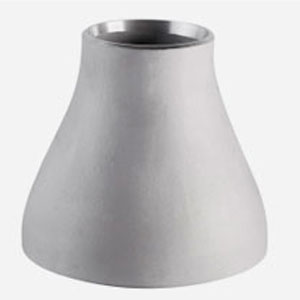

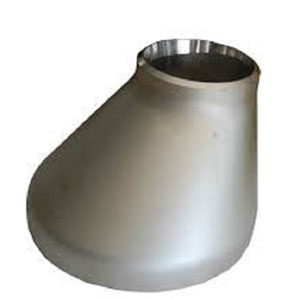

Our regular production and stock items include stainless steel reducers, carbon steel reducers, alloy steel reducers and duplex steel reducers. A steel pipe reducer is one of the most commonly used industrial pipe fitting, which helps to connect two pipes or tubes of different diameters. These are mainly used to adapt different pipe size in a pipeline system. Pipe reducers can mainly be categorized in two types – concentric reducer and eccentric reducer.

Our products have won approvals of major end users in India and overseas including oil and gas, power station, petrochemicals and shipbuilding industries.

Buttweld Pipe Reducer Production Range – Concentric & Excentric

Outside Diameter:	Seamless Pipe Tee ( 1/2″～24″), ERW / Welded / Fabricated Pipe Tee (1/2″～48″)
Types:	Concentric Reducers, Eccentric Reducers
Wall Thickness:	3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services:	Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades:	Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards– Pipe Reducer

ASME:	ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN:	DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN:	EN10253-1, EN10253-2

ASTM A403 – ASME SA403	Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9	Factory-Made Wrought Fittings Buttwelding
ASME B16.25	Buttwelding Ends
ASME B16.28	Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Reducer Material Grades

Stainless Steel Reducer	ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Reducer	ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Low Temperature Carbon Steel Reducer	ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer	ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Reducer	ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462
Nickel Alloy Reducer	ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Marking & Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At Exotic piping Solution INC, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
